CCB -V/UHF CONFORMAL ANTENNAS
FOR NAVAL APPLICATIONS
In collaboration with CNIT

Description

Specification

  • Flush mounted in modern naval integrated mast
  • Suitable for composite or metallic mast
  • Very low RCS contribution
  • Single element has a directive radiation pattern
  • Array of 4 elements guarantees an omnidirectional beam on the azimuth plane
  • The primary purpose of the device is to allow both transmission and reception of data and voice in the band [225÷600] [MHz].

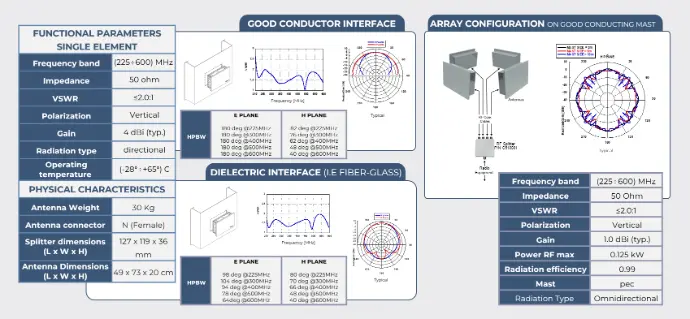

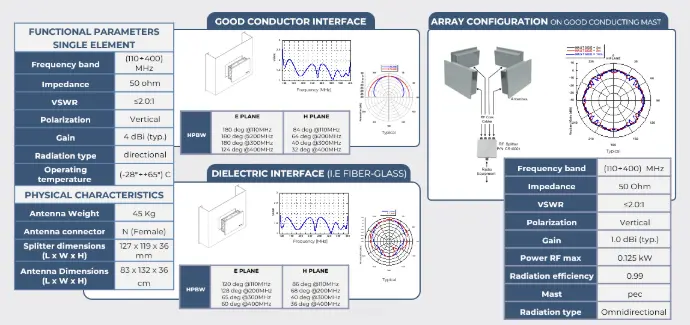

Technical Features

CP001-AA


CP002-AA
